1. High-Quality Audio Transmission
-
Uncompressed audio transmission with a 48 kHz sampling rate
-
Shielded Cat5e cabling ensures reliable, interference-free sound over long distances
2. Low-Latency Signal Processing
-
Advanced segmented compression mixing and clock synchronization technology
-
End-to-end delay from microphone pickup to host output: 5 ms
3. Built-in DSP Processing
-
16-channel audio matrix
-
Howling suppression, 10-band EQ, adjustable gain (dB), and delay functions
4. Dual Recording Options
-
Record to USB flash drive (via host) or client software
-
Supports single-unit or mixed-unit recording for post-event review

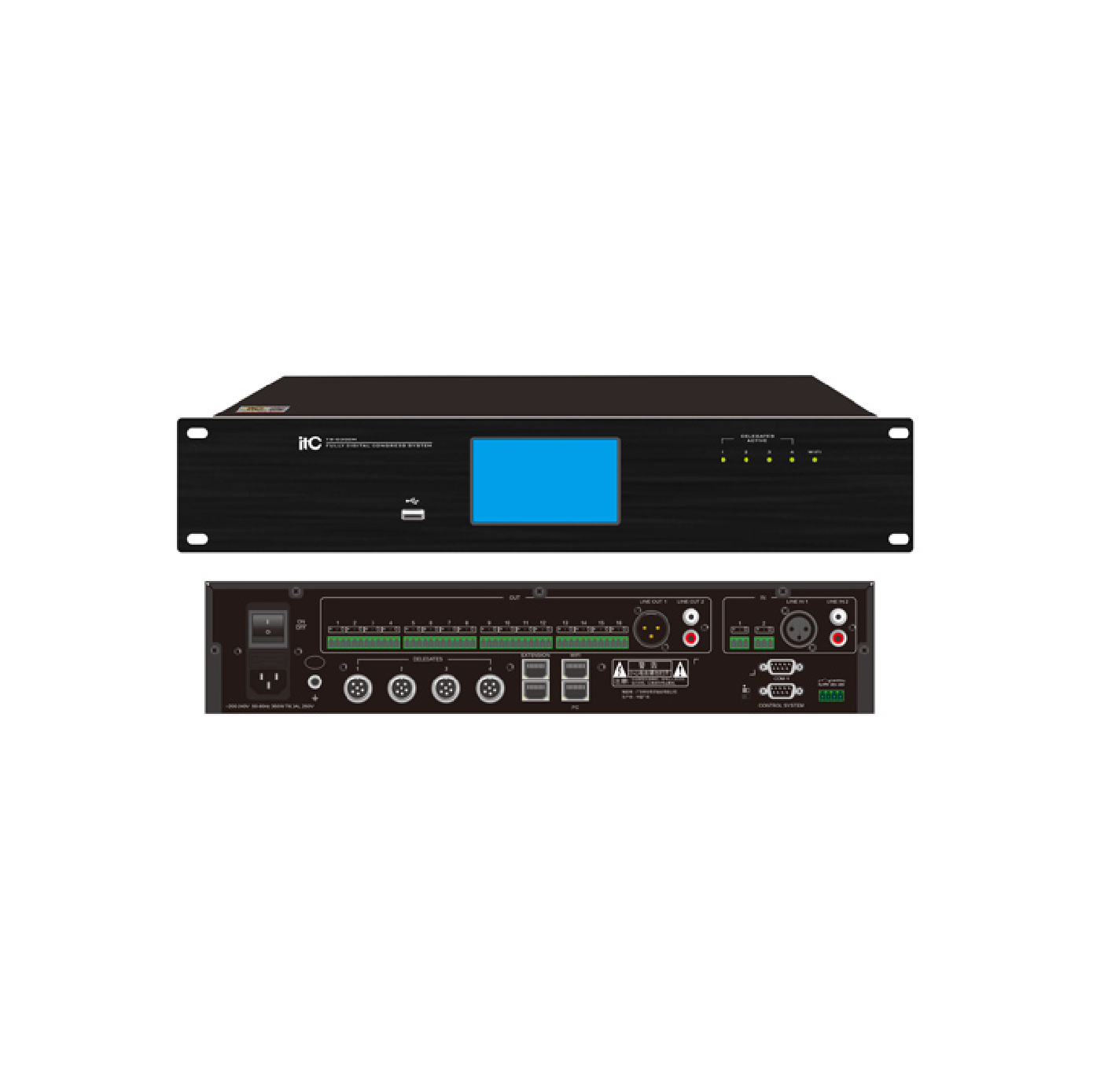

5. Comprehensive Connectivity
-
Front/Rear I/O: 1× USB, 2× RS-232, 1× RS-485, 4× RJ45
-
Audio Inputs: 1× RCA, 1× XLR, 2× Phoenix terminal
-
Audio Outputs: 1× RCA, 1× XLR, 16× Phoenix terminal
-
Includes DIP switch and grounding terminal
6. Flexible Output Channel Configuration
-
16 audio outputs, expandable to 272 channels
-
Configurable as wired separation, wireless separation, or simultaneous mode
-
Independent per-channel controls:
-
30-step volume adjustment
-
10-band EQ
-
100-step delay control
-
7. Triple-Redundancy Reliability
-
Dual-host hot standby (automatic failover to backup)
-
Ring dual-link network protection
-
T-Link fault isolation ensures unaffected units remain active
8. Networked Conference Integration
-
Seamless integration with microphone processor via network connection
-
Handles 16 wired + 8 wireless conference units simultaneously
-
Features feedback suppression, intelligent mixing, and auto-gain
9. Role-Based Output & Recording
-
16-channel role separation output, supporting up to 128 channels
-
Independent wired/wireless channel outputs and per-unit recording
10. System Expansion & Partitioning
-
16-channel group output interface
-
Supports merging/splitting of up to 16 independent conference rooms
11. Control & Management Options
-
C/S & B/S architecture: Client, Web, local 4.3” touch panel, Android phone/tablet
-
Full control over EQ, volume, delay, mode switching, and language settings
-
Multi-language interface (Chinese, English, Russian, French)
12. Multi-Platform Software Support
-
Compatible with Windows 7/10/11, macOS, Ubuntu, Tongxin UOS, Kylin OS (Zhaoxin & Feitian)
13. Massive Unit Capacity
-
Supports 4096 wired + 300 wireless units simultaneously
-
Up to 24 open microphones at once (16 wired + 8 wireless)
14. Reliability & Safety
-
Multi-loop link detection with 5 ms recovery time
-
Fire alarm linkage interface for real-time evacuation alerts
15. Video & Camera Tracking Support
-
1× RS-485 interface supporting PELCO-D & VISCA protocols
-
Works with camera tracking hosts for multi-channel auto-tracking
16. Comprehensive Meeting Functions
-
Sign-in, voting, election, rating, satisfaction surveys
-
Multiple microphone modes: FIFO, Normal, Voice-activated, Apply
-
Chairman/delegate priority settings
17. Wireless Management & Monitoring
-
AP channel scanning with auto/manual best-channel selection
-
Real-time monitoring of battery, Wi-Fi signal, and device status
-
One-click shutdown for all or individual wireless units
18. Audio & Interpretation Capabilities
-
Supports up to 63+1 simultaneous interpretation channels
-
Echo cancellation, noise suppression, and mix-minus routing
-
Optional Dante/AES67 AoIP support
19. Advanced System Management
-
Remote firmware upgrade & log management via web
-
Cloud or local backup/restore of configuration data
-
Integrated audio management platform for unified device control
20. Front Panel Indicators & UI
-
5 status indicators for quick device monitoring
-
Switchable web UI themes (Simple, Government, Fashion, Vitality)
-
