SOFTWARE(Optional)
- Zoom Rooms Controller
- VooV Meeting Rooms Controller
- Lark Rooms Controller
INTERFACE
- USB Interface: 1 x USB2.0 Type-C (device):1x USB 2.0 Type-A
- Network Interface: 1 x RJ45: 10/100/1000 Base-T, 1 x 2.4G/5G Wi-Fi5
AUDIO SPECIFICATIONS AND FEATURES
- Micphone: Pickup range of 2 meters
- Speaker: 1 x 1.5W
VIDEO SPECIFICATIONS AND FEATURES

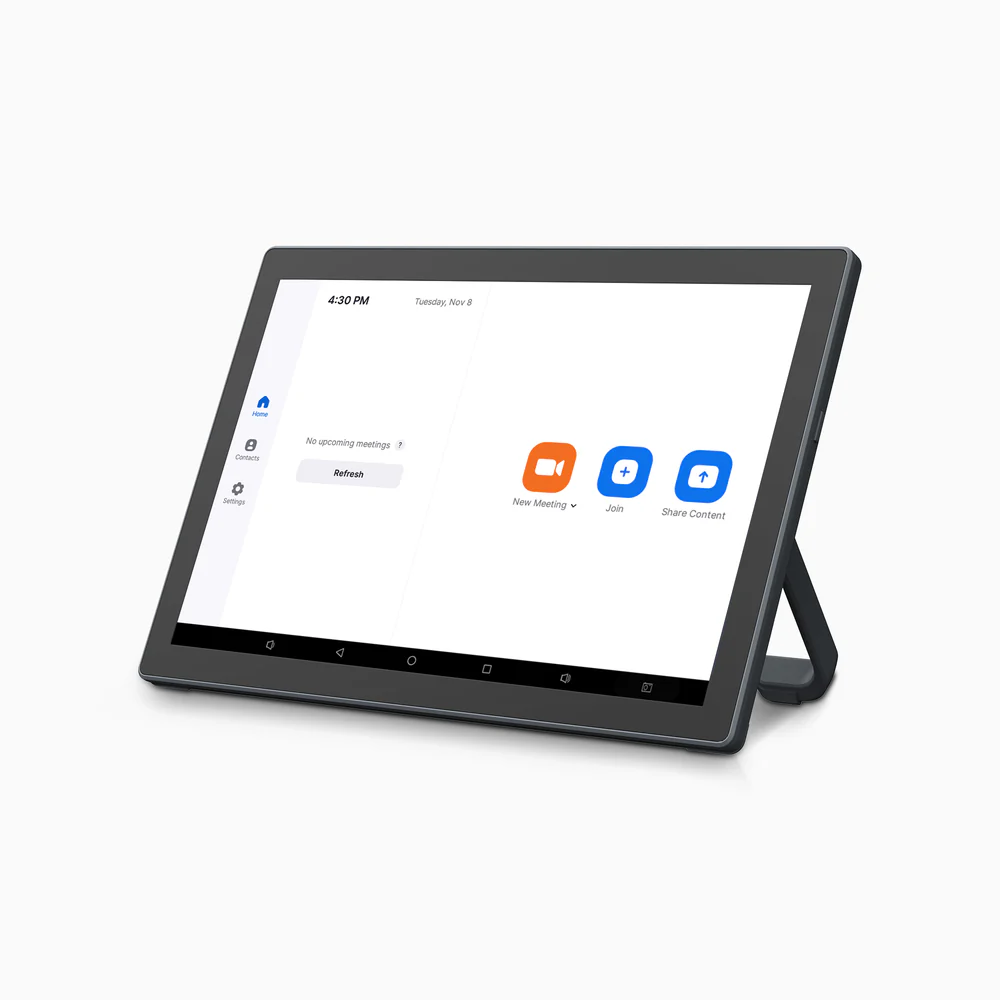

- Touch Screen
- 10.1-inch IPS touch screen, Multi-Touch
- Resolution: 1920* 120 0 (1 280 *800 optional)
- Visual Angle: 170 degrees
- Brightness: 300cd/ ㎡ (typ)
HARDWARE PLATFORM
- Operate System Android 9.0
- CPU Amlogic A311d, 4xCortex A73+2xCoretex-A53
- GPU ARM G52 MP4(6EE),OpenGL ES 3.2, Vulkan 1.1 , OpenCL 2.0
- Storage 4G RAM+16GB ROM
- Codec
Encoder: H.264/H.265
1 x 1080P@60fps
Decoder:
H.265 HEVC MP-10@L5.1 up to
4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps - Wi-Fi Standard IEEE802.11a/b/g/n/ac,WPA,WPA2
- BT BT 5.0
PHYSICAL CHARACTERISTICS
- Dimensions 243 x164 x33mm
- Wi-Fi Frequency 2.4G&5G
- Dual frequency
• Operating temperature: 0°C to 40ºC
• Operating humidity: 10% to 80%
• Non-Operating temperature: -40º to -70ºC
• Non-operating humidity (non-condensing): 0%to 95% - Approval and Compliance CQC RoHS
