Product Details
Camera
- Video Resolution 1080P, 720P, 540P, 480P, 360P, 240P
- Sensor 1/2.8”, CMOS, 2.07 Megapixels
- Scanning Mode Progressive
- Lens 10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8
- Digital Zoom 16x
- Minimal Illumination 0.5Lux @ (F1.8, AGC ON)
- Shutter 1/30s ~ 1/10000s
- White Balance Auto, Indoor, Outdoor, One Push, Manual,
Adjustable color temperature - Backlight Compensation Support
- Digital Noise Reduction 2D&3D Digital Noise Reduction
- Video S/N ≥55dB
- Horizontal Angle of View 58.5° ~ 6.5°
- Vertical Angle of View 35.1° ~ 3.6°
- Horizontal Rotation Range ±170°
- Vertical Rotation Range -30° ~ +90°
- Pan Speed Range 2.7° ~ 47°/s
- Tilt Speed Range 3.4° ~ 30°/s
- H & V Flip Support
- Number of Preset 255
- Preset Accuracy 0.1°
USB features
- Operating System Windows 7, Windows 8, Windows 10, Mac
OS X, Linux, Android - Color System / Compression YUY2 / H.264 / MJPEG
- Video Format
H.264 AVC: Max 1080P30;
H.264 SVC: Max 1080P30;
MJPEG: Max 1080P30 - USB Video Communication Protocol UVC 1.1
- UVC PTZ Control Support

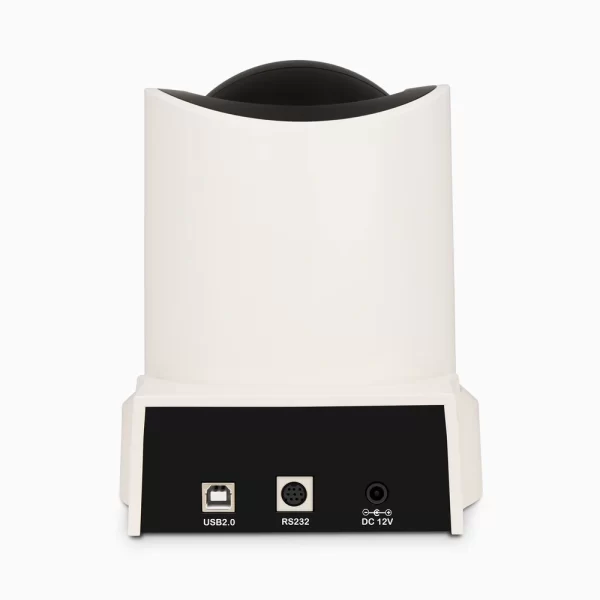

INPUT / OUTPUT INTERFACE
- USB 1x USB 2.0, Type-B Jack
- Communication Interface 1x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
- Power Jack JEITA Type (DC IN 12V)
General specifications
- Input Voltage DC 12V
- Input Current 1A (Max)
- Operating Temperature -10°C ~ 40°C
- Storage Temperature -40°C ~ 60°C
- Power Consumption 12W (Max)
- MTBF >30000H
- Dimension 141.5mm(W) × 151.1mm(D) × 170.2mm(H)
- Weight 1.153kg
