Speaker
- RMS Total Output Power :10W x2 + 15W x2(+/- 0.5 dB,10% THD)
- Impedance: 4Ω
- Frequency Response : 110Hz – 16kHz / ±3 dB
- Loudness : 50dB SPL @ 1W, 95dB SPL @ 7.5W
- Signal-to-noise Ratio : > 65 dB
- Total Harmonic Distortion : 200Hz–300Hz < 2.5%,
300Hz–10kHz < 1%@7.5W - Sampling Rate: 48 kHz

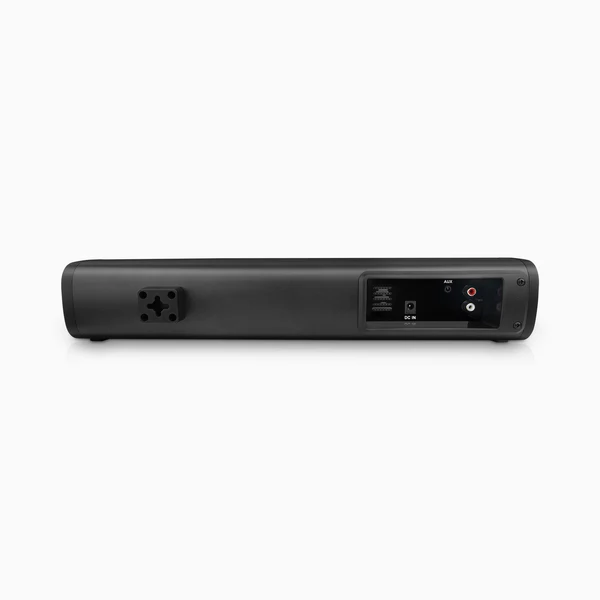

Input/Output Interface
- Audio Input: 1x Line In, 3.5mm Audio Interface
- RCA Interface: 1x RCA, Dual channel, (Connect the sub speaker)
- Power Interface: DC 18V
Installation Mod
- Stationary type: Wall mounting, Hanging mounting

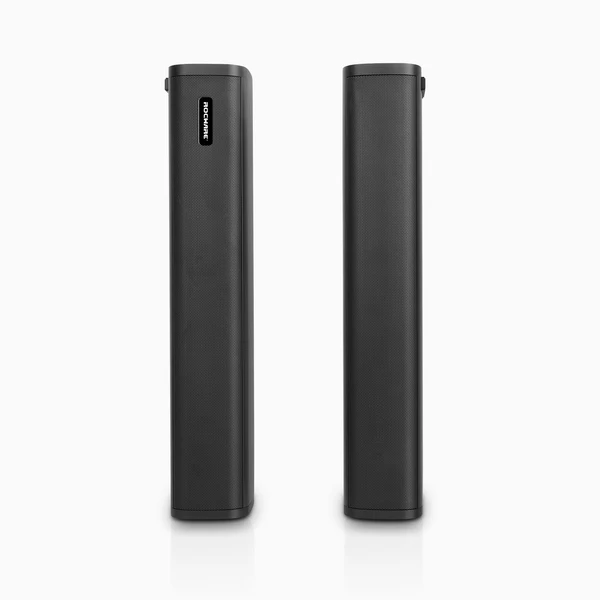

- Combined type: Split mounting, Stack mounting
General Specifications
- Input Voltage: DC 18V
- Input Current: 2A
- Operating Temperature : -10°C ~ 40°C (14°F ~ 104°F)
- Storage Temperature : -40°C ~ 60°C (-40°F ~ 140°F)
- Power Consumption: 30W
- MTBF : >30000H
- Main-speaker size : 408.5mm × 73mm × 90mm
- Sub-speaker size : 402.5mm × 73mm × 90mm
- Combined size : 805mm × 73mm × 90mm
- Net Weight: 1.5Kg ( 3.30 lb )
- Product certification : CE, GS, CB, FCC, ETL, SAA, RCM, PSE
