Main Features
Intel Core i5-10500 processor
Intel UHD Graphics 630
Support 2 independent 4K2K video output
The JAE 80pin supports HDMI2.0
Support M.2 SSD storage
Support DDR4 dual-channel memory
ICD OPS i5 D, using Intel® Core™ i5-10500 processor, conforms to the industry specification of Intel® OPS-C. It supports M.2 SSD storage and DDR4 dual-channel memory. In addition, the ICD OPS i5 D utilizes the latest generation of Intel® UHD Graphics 630 to provide excellent image processing capabilities and supports two independent 4K2K video outputs. It is suitable for scenarios such as digital signage, education and conference whiteboards.
Technical Specification
- CPU Support: Intel Core i5-10500 processor
- Chipset: Intel H510 PCH
- Graphic: Intel UHD Graphics 630
- Memory: 8GB DDR4 (2 x 4 GB)
- Storage: 1x 128 GB M.2 2280
- Connectivity: Wi-Fi / Bluetooth 2-in-1 module AC3168
- Operation System: Windows 10 IoT(EE)
- Power Supply: DC 19V 4.74A 90W
- Dimension (W x L x H): 195 mm x 180 mm x 30mm
- Colour: Black
- Net Weight: About 1.5kg

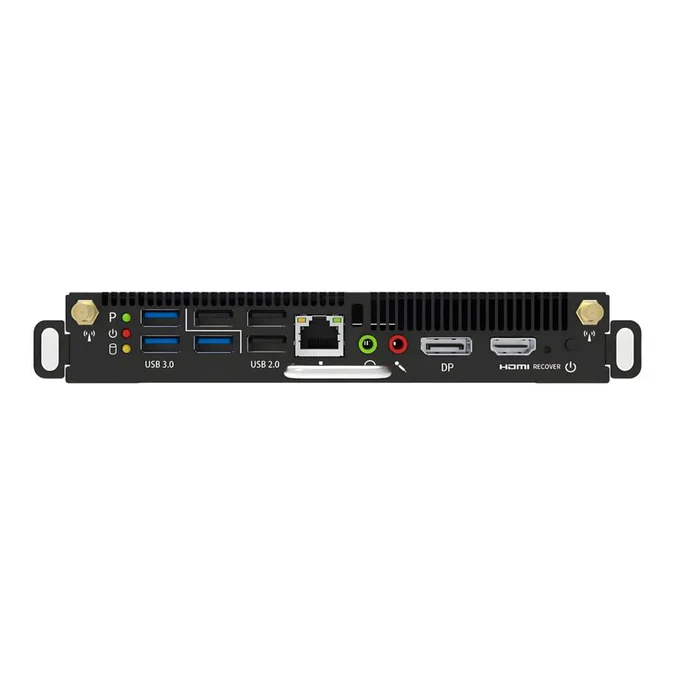

Ports
- 1x Power button
- 1x Recovery button
- 1x RJ45
- 3x USB 3.0
- 3x USB 2.0
- 1x HDMI1.4
- 1x DP1.2
- 1x Audio line out
- 1x MIC IN
